Actions Runner Controller
Introduction
Actions Runner Controller (ARC) is a Kubernetes operator that orchestrates and scales self-hosted runners for Gitea Actions. For more information, see Operator pattern in the Kubernetes documentation.
With ARC, you can create runner scale sets that automatically scale based on the number of workflows running in your repository, organization, or enterprise. Because controlled runners can be ephemeral and based on containers, new runner instances can scale up or down rapidly and cleanly.
Prerequisites
In order to use ARC, ensure you have the following.
- Gitea Enterprise Edition version number greater than 23.8.0, activated
- A Kubernetes cluster
Local Persistent Volume
kubectl apply -f https://raw.githubusercontent.com/rancher/local-path-provisioner/v0.0.31/deploy/local-path-storage.yaml
A successful output will look similar to the following.
namespace/local-path-storage created
serviceaccount/local-path-provisioner-service-account created
role.rbac.authorization.k8s.io/local-path-provisioner-role created
Warning: resource clusterroles/local-path-provisioner-role is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
clusterrole.rbac.authorization.k8s.io/local-path-provisioner-role configured
rolebinding.rbac.authorization.k8s.io/local-path-provisioner-bind created
Warning: resource clusterrolebindings/local-path-provisioner-bind is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
clusterrolebinding.rbac.authorization.k8s.io/local-path-provisioner-bind configured
deployment.apps/local-path-provisioner created
Warning: resource storageclasses/local-path is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
storageclass.storage.k8s.io/local-path configured
configmap/local-path-config created
For more information about local-path-provisioner, see local-path-provisioner README
Installing Actions Runner Controller
cat > install.yml << EOF
apiVersion: v1
kind: Namespace
metadata:
labels:
app.kubernetes.io/managed-by: kustomize
app.kubernetes.io/name: runner-controller
control-plane: controller-manager
name: runner-controller-system
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
annotations:
controller-gen.kubebuilder.io/version: v0.16.1
name: runners.gitea.com
spec:
group: gitea.com
names:
kind: Runner
listKind: RunnerList
plural: runners
singular: runner
scope: Namespaced
versions:
- name: v1
schema:
openAPIV3Schema:
description: Runner is the Schema for the runners API
properties:
apiVersion:
description: |-
APIVersion defines the versioned schema of this representation of an object.
Servers should convert recognized schemas to the latest internal value, and
may reject unrecognized values.
More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources
type: string
kind:
description: |-
Kind is a string value representing the REST resource this object represents.
Servers may infer this from the endpoint the client submits requests to.
Cannot be updated.
In CamelCase.
More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds
type: string
metadata:
type: object
spec:
description: RunnerSpec defines the desired state of Runner
properties:
gitea:
description: Gitea is the Gitea spec
properties:
instanceUrl:
description: InstanceUrl is the URL of the Gitea instance
format: url
type: string
registrationToken:
description: RegistrationToken is the registration token of the
runner
type: string
required:
- instanceUrl
- registrationToken
type: object
runtime:
default:
image: gitea/act_runner:nightly-dind
labels:
ubuntu-20.04: docker://gitea/runner-images:ubuntu-20.04
ubuntu-22.04: docker://gitea/runner-images:ubuntu-22.04
ubuntu-latest: docker://gitea/runner-images:ubuntu-latest
description: Runtime is the runtime spec
properties:
image:
default: gitea/act_runner:nightly-dind
description: Image is the image of the runner
type: string
labels:
additionalProperties:
type: string
default:
ubuntu-20.04: docker://gitea/runner-images:ubuntu-20.04
ubuntu-22.04: docker://gitea/runner-images:ubuntu-22.04
ubuntu-latest: docker://gitea/runner-images:ubuntu-latest
description: Labels is the labels of the runner
type: object
required:
- labels
type: object
scalability:
default:
cpuRequest: "2"
maxSize: 10
memoryRequest: 4Gi
description: Scalability is the scalability spec
properties:
cpuRequest:
anyOf:
- type: integer
- type: string
default: "2"
description: CpuRequest is the CPU request of each runner
pattern: ^(\+|-)?(([0-9]+(\.[0-9]*)?)|(\.[0-9]+))(([KMGTPE]i)|[numkMGTPE]|([eE](\+|-)?(([0-9]+(\.[0-9]*)?)|(\.[0-9]+))))?$
x-kubernetes-int-or-string: true
maxSize:
default: 10
description: MaxSize is the maximum size of the runner
maximum: 9999
minimum: 1
type: integer
memoryRequest:
anyOf:
- type: integer
- type: string
default: 4Gi
description: MemoryRequest is the memory request of each runner
pattern: ^(\+|-)?(([0-9]+(\.[0-9]*)?)|(\.[0-9]+))(([KMGTPE]i)|[numkMGTPE]|([eE](\+|-)?(([0-9]+(\.[0-9]*)?)|(\.[0-9]+))))?$
x-kubernetes-int-or-string: true
type: object
storage:
default:
cacheServerVolumeSize: 500Gi
cacheVolumeSize: 100Gi
className: standard
dataVolumeSize: 100Mi
description: Storage is the storage spec
properties:
cacheServerVolumeSize:
anyOf:
- type: integer
- type: string
default: 500Gi
description: CacheServerVolumeSize is the size of the cache server
volume
pattern: ^(\+|-)?(([0-9]+(\.[0-9]*)?)|(\.[0-9]+))(([KMGTPE]i)|[numkMGTPE]|([eE](\+|-)?(([0-9]+(\.[0-9]*)?)|(\.[0-9]+))))?$
x-kubernetes-int-or-string: true
cacheVolumeSize:
anyOf:
- type: integer
- type: string
default: 100Gi
description: CacheVolumeSize is the size of the cache volume
pattern: ^(\+|-)?(([0-9]+(\.[0-9]*)?)|(\.[0-9]+))(([KMGTPE]i)|[numkMGTPE]|([eE](\+|-)?(([0-9]+(\.[0-9]*)?)|(\.[0-9]+))))?$
x-kubernetes-int-or-string: true
className:
default: standard
description: ClassName is the storage class name
type: string
dataVolumeSize:
anyOf:
- type: integer
- type: string
default: 100Mi
description: DataVolumeSize is the size of the data volume
pattern: ^(\+|-)?(([0-9]+(\.[0-9]*)?)|(\.[0-9]+))(([KMGTPE]i)|[numkMGTPE]|([eE](\+|-)?(([0-9]+(\.[0-9]*)?)|(\.[0-9]+))))?$
x-kubernetes-int-or-string: true
type: object
required:
- gitea
type: object
status:
description: RunnerStatus defines the observed state of Runner
properties:
targetSize:
type: integer
targetSizeUpdatedAt:
format: date-time
type: string
required:
- targetSize
- targetSizeUpdatedAt
type: object
type: object
served: true
storage: true
subresources:
status: {}
---
apiVersion: v1
kind: ServiceAccount
metadata:
labels:
app.kubernetes.io/managed-by: kustomize
app.kubernetes.io/name: runner-controller
name: runner-controller-controller-manager
namespace: runner-controller-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
labels:
app.kubernetes.io/managed-by: kustomize
app.kubernetes.io/name: runner-controller
name: runner-controller-leader-election-role
namespace: runner-controller-system
rules:
- apiGroups:
- ""
resources:
- configmaps
verbs:
- get
- list
- watch
- create
- update
- patch
- delete
- apiGroups:
- coordination.k8s.io
resources:
- leases
verbs:
- get
- list
- watch
- create
- update
- patch
- delete
- apiGroups:
- ""
resources:
- events
verbs:
- create
- patch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: runner-controller-manager-role
rules:
- apiGroups:
- ""
resources:
- configmaps
- events
- persistentvolumeclaims
- persistentvolumes
- pods
- services
verbs:
- create
- delete
- get
- list
- patch
- update
- watch
- apiGroups:
- gitea.com
resources:
- runners
verbs:
- create
- delete
- get
- list
- patch
- update
- watch
- apiGroups:
- gitea.com
resources:
- runners/finalizers
verbs:
- update
- apiGroups:
- gitea.com
resources:
- runners/status
verbs:
- get
- patch
- update
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: runner-controller-metrics-auth-role
rules:
- apiGroups:
- authentication.k8s.io
resources:
- tokenreviews
verbs:
- create
- apiGroups:
- authorization.k8s.io
resources:
- subjectaccessreviews
verbs:
- create
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: runner-controller-metrics-reader
rules:
- nonResourceURLs:
- /metrics
verbs:
- get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
app.kubernetes.io/managed-by: kustomize
app.kubernetes.io/name: runner-controller
name: runner-controller-runner-editor-role
rules:
- apiGroups:
- gitea.com
resources:
- runners
verbs:
- create
- delete
- get
- list
- patch
- update
- watch
- apiGroups:
- gitea.com
resources:
- runners/status
verbs:
- get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
app.kubernetes.io/managed-by: kustomize
app.kubernetes.io/name: runner-controller
name: runner-controller-runner-viewer-role
rules:
- apiGroups:
- gitea.com
resources:
- runners
verbs:
- get
- list
- watch
- apiGroups:
- gitea.com
resources:
- runners/status
verbs:
- get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
app.kubernetes.io/managed-by: kustomize
app.kubernetes.io/name: runner-controller
name: runner-controller-leader-election-rolebinding
namespace: runner-controller-system
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: runner-controller-leader-election-role
subjects:
- kind: ServiceAccount
name: runner-controller-controller-manager
namespace: runner-controller-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
app.kubernetes.io/managed-by: kustomize
app.kubernetes.io/name: runner-controller
name: runner-controller-manager-rolebinding
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: runner-controller-manager-role
subjects:
- kind: ServiceAccount
name: runner-controller-controller-manager
namespace: runner-controller-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: runner-controller-metrics-auth-rolebinding
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: runner-controller-metrics-auth-role
subjects:
- kind: ServiceAccount
name: runner-controller-controller-manager
namespace: runner-controller-system
---
apiVersion: v1
kind: Service
metadata:
labels:
app.kubernetes.io/managed-by: kustomize
app.kubernetes.io/name: runner-controller
control-plane: controller-manager
name: runner-controller-controller-manager-metrics-service
namespace: runner-controller-system
spec:
ports:
- name: https
port: 8443
protocol: TCP
targetPort: 8443
selector:
control-plane: controller-manager
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app.kubernetes.io/managed-by: kustomize
app.kubernetes.io/name: runner-controller
control-plane: controller-manager
name: runner-controller-controller-manager
namespace: runner-controller-system
spec:
replicas: 1
selector:
matchLabels:
control-plane: controller-manager
template:
metadata:
annotations:
kubectl.kubernetes.io/default-container: manager
labels:
control-plane: controller-manager
spec:
containers:
- args:
- --metrics-bind-address=:8443
- --leader-elect
- --health-probe-bind-address=:8081
command:
- /manager
image: commitgo/runner-controller:v0.3.1
livenessProbe:
httpGet:
path: /healthz
port: 8081
initialDelaySeconds: 15
periodSeconds: 20
name: manager
readinessProbe:
httpGet:
path: /readyz
port: 8081
initialDelaySeconds: 5
periodSeconds: 10
resources:
limits:
cpu: 500m
memory: 128Mi
requests:
cpu: 10m
memory: 64Mi
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
securityContext:
runAsNonRoot: true
serviceAccountName: runner-controller-controller-manager
terminationGracePeriodSeconds: 10
EOF
kubectl apply -f install.yml
A successful output will look similar to the following.
namespace/runner-controller-system created
customresourcedefinition.apiextensions.k8s.io/runners.gitea.com created
serviceaccount/runner-controller-controller-manager created
role.rbac.authorization.k8s.io/runner-controller-leader-election-role created
clusterrole.rbac.authorization.k8s.io/runner-controller-manager-role created
clusterrole.rbac.authorization.k8s.io/runner-controller-metrics-auth-role created
clusterrole.rbac.authorization.k8s.io/runner-controller-metrics-reader created
clusterrole.rbac.authorization.k8s.io/runner-controller-runner-editor-role created
clusterrole.rbac.authorization.k8s.io/runner-controller-runner-viewer-role created
rolebinding.rbac.authorization.k8s.io/runner-controller-leader-election-rolebinding created
clusterrolebinding.rbac.authorization.k8s.io/runner-controller-manager-rolebinding created
clusterrolebinding.rbac.authorization.k8s.io/runner-controller-metrics-auth-rolebinding created
service/runner-controller-controller-manager-metrics-service created
deployment.apps/runner-controller-controller-manager created
Configuration
cat > runner.yml << EOF
apiVersion: gitea.com/v1
kind: Runner
metadata:
labels:
app.kubernetes.io/name: runner-controller
app.kubernetes.io/managed-by: kustomize
name: "gitea-runner" # TODO, like my-runner
spec:
gitea:
instanceUrl: "Your Gitea instanlce URL" # TODO, like https://mygitea.com/
registrationToken: "<Your registration token>" # TODO, it's the same token to register runners
runtime:
labels:
ubuntu-latest: docker://gitea/runner-images:ubuntu-latest
ubuntu-22.04: docker://gitea/runner-images:ubuntu-22.04
ubuntu-20.04: docker://gitea/runner-images:ubuntu-20.04
storage:
className: "local-path" # TODO, it should be real storage class in your k8s cluster
scalability:
maxSize: 10
cpuRequest: 4
memoryRequest: 8Gi
EOF
kubectl apply -f runner.yml
A successful output will look similar to the following.
runner.gitea.com/gitea-runner created
- Get the runner opration pods
NAME READY STATUS RESTARTS AGE
runner-controller-controller-manager-ff9cbc7b-kbxzh 1/1 Running 0 14m

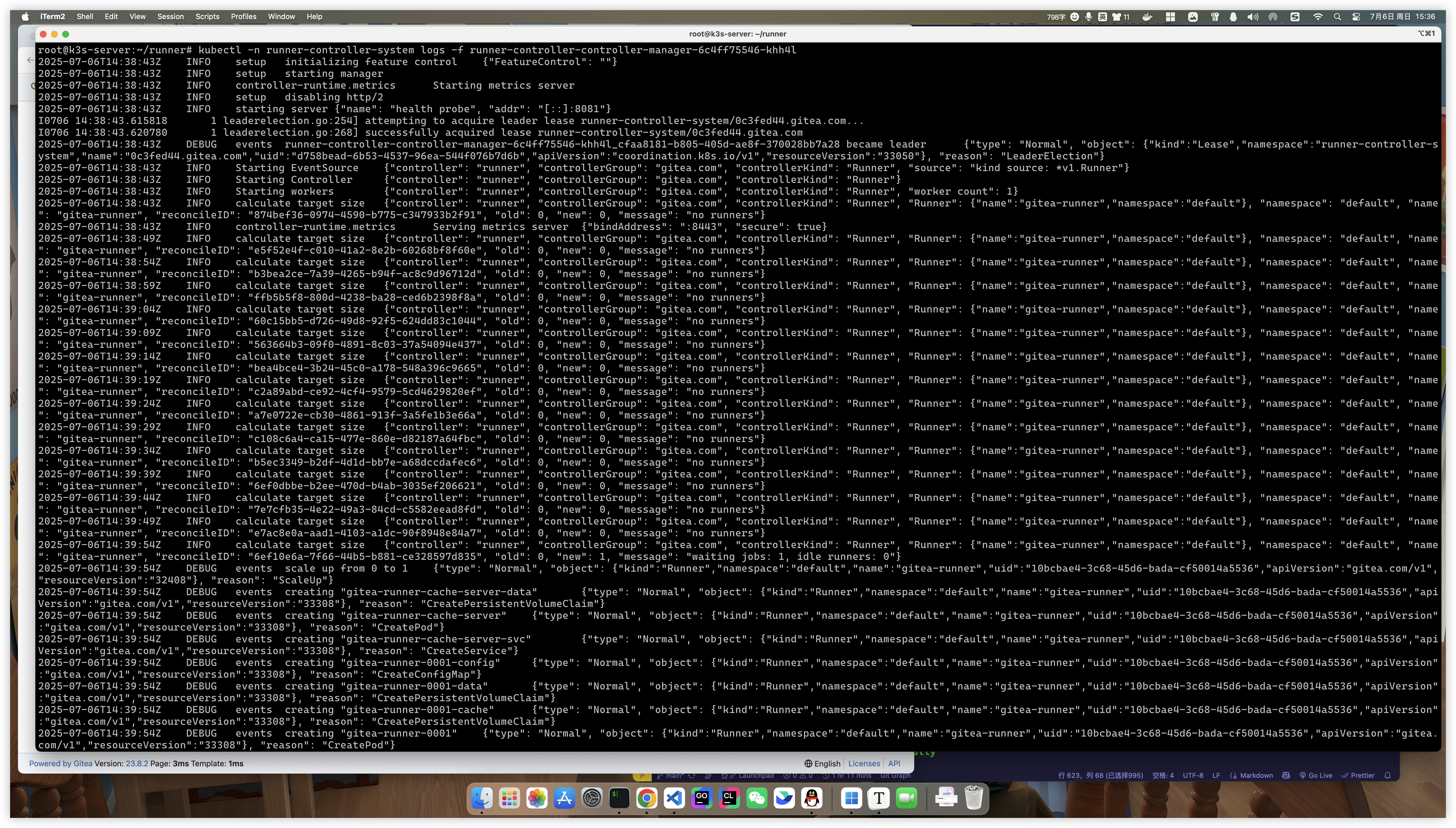

- Get the runner opration logs
kubectl -n runner-controller-system logs -f runner-controller-controller-manager-ff9cbc7b-kbxzh
Using runner scale sets

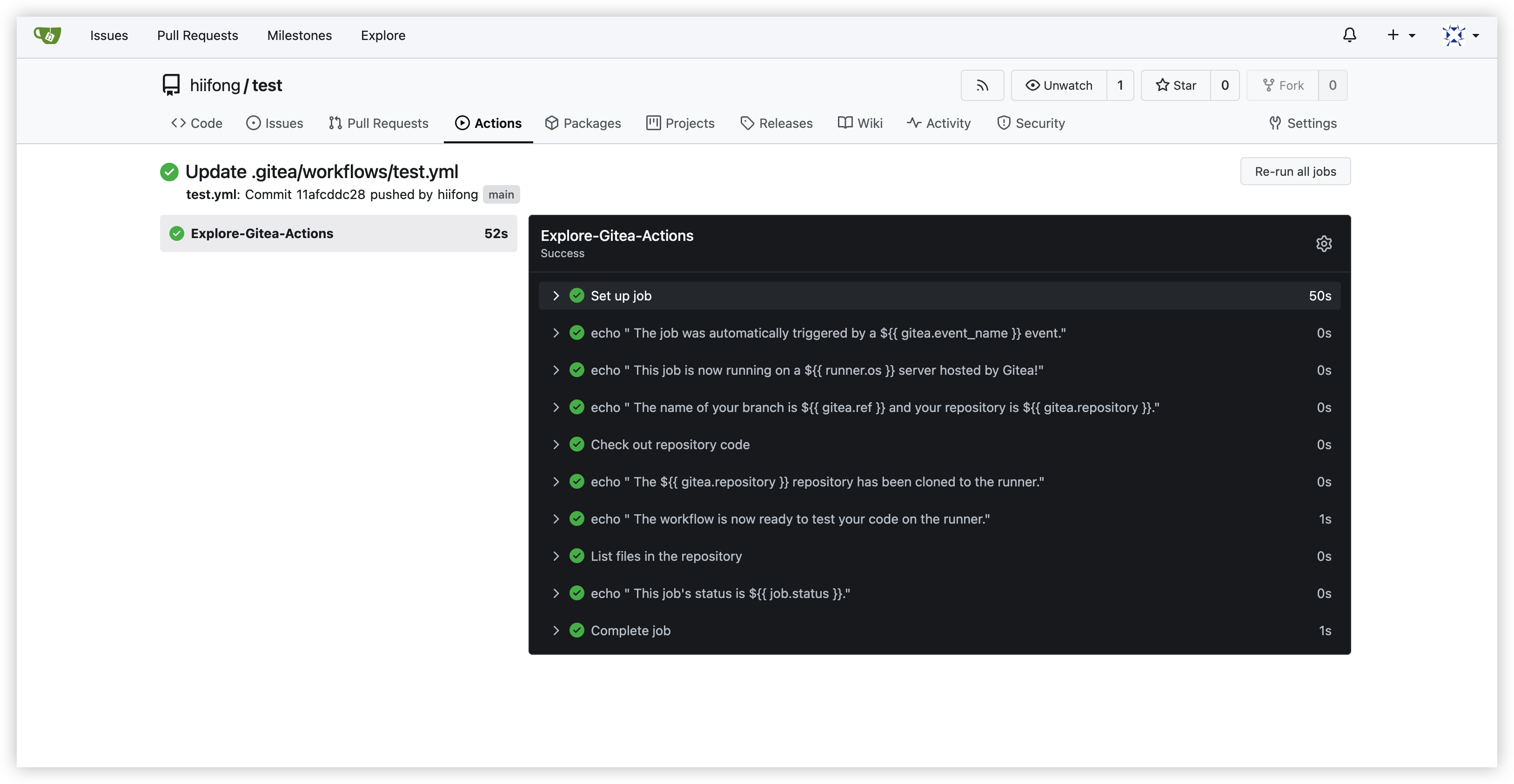

Now you will create and run a simple test workflow that uses the runner scale set runners.

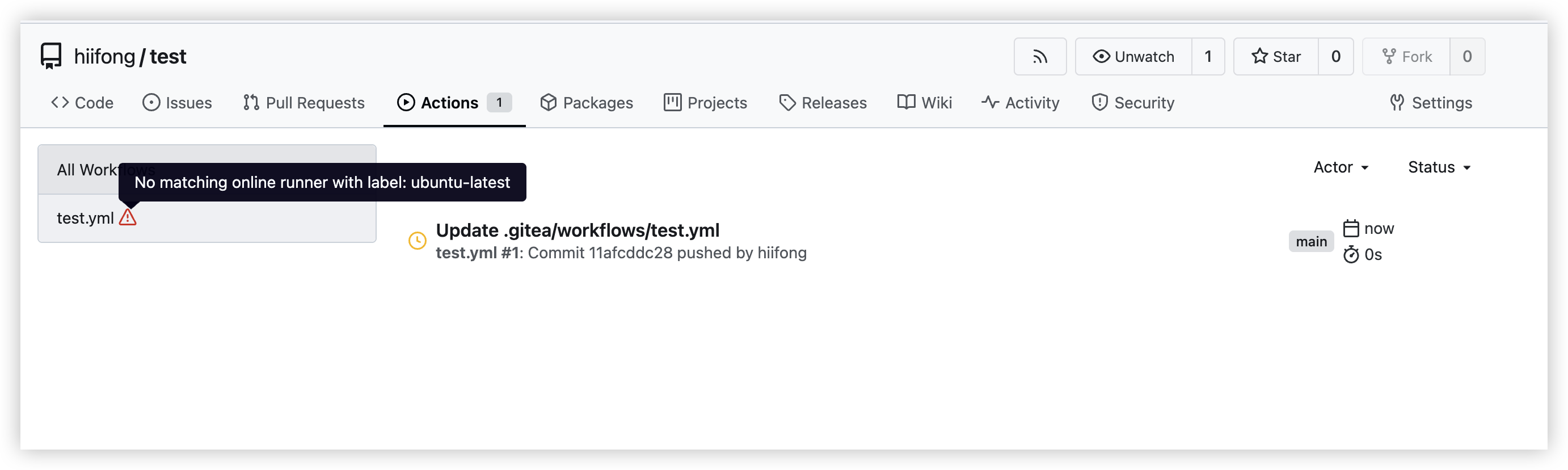

In a repository, create a workflow similar to the following example. The runs-on value should match the runner runtime labels name you used when you installed the autoscaling runner set.
-
In a repository, create a workflow similar to the following example. The runs-on value should match the runner runtime labels name you used when you installed the autoscaling runner set.
For more information on adding workflows to a repository, see Quickstart for Gitea Actions.
name: Gitea Actions Demo
run-name: ${{ gitea.actor }} is testing out Gitea Actions
on: [push]
jobs:
Explore-Gitea-Actions:
runs-on: ubuntu-latest
steps:
- run: echo " The job was automatically triggered by a ${{ gitea.event_name }} event."
- run: echo " This job is now running on a ${{ runner.os }} server hosted by Gitea!"
- run: echo " The name of your branch is ${{ gitea.ref }} and your repository is ${{ gitea.repository }}."
- name: Check out repository code
uses: actions/checkout@v4
- run: echo " The ${{ gitea.repository }} repository has been cloned to the runner."
- run: echo " The workflow is now ready to test your code on the runner."
- name: List files in the repository
run: |
ls ${{ gitea.workspace }}
- run: echo " This job's status is ${{ job.status }}."
- To view the runner pods being created while the workflow is running, run the following command from your terminal.
kubectl get pods
- A successful output will look similar to the following.
NAME READY STATUS RESTARTS AGE
gitea-runner-0001 1/1 Running 0 56s
gitea-runner-cache-server 1/1 Running 0 26s
